RIP Technology

New guidelines require the use of inductive plethysmography for effort measurement and BRAEBON's new Q-RIPTM effort system is the better solution! Our one-size-fits-most belt uses the correct X-Y axis for inductance measurement. The interface unit always includes the sum output and the unit is smart - it turns itself off after 14 hours. This premium high-quality product is durable and backed by a one-year warranty on belts and interface.

Q-RIP Respiratory Inductive Plethysmography Kit

Model 0570

* Superior quality RIP system

* Senses changes in respiratory effort

* Features 14 hour auto-off

* Detect chest and abdomen effort as well as SUM

* Kit includes the belts and all required cables

* Replaceable AA rechargeable or disposable batteries

* Warranty: 1 year

Q-RIP Belts

Models 0572, 0572L, 0572PED

* Premium Respiratory Inductive Plethysmography belts

* 0572 - One-size-fits-most adult belt (24" - 48")

* 0572L - Extra adjustable RIP belt (48" - 72")

* 0572PED - Pediatric adjustable RIP belt (12" - 24")

* Warranty: 1 year

Piezo Technology

Our Piezo Respiratory Effort Belts are compatible with most polygraphs and computerized PSG systems and install quickly and easily. Connect them directly to your AC headbox - no batteries required!

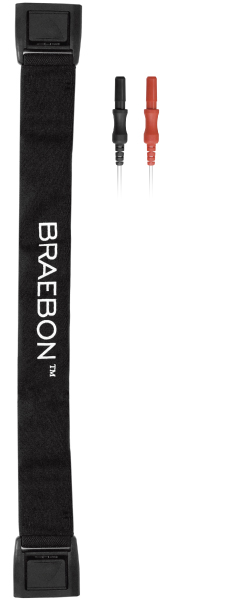

Respiratory Effort Sensor

Model 0528

* High output up to five times stronger than others

* Designed to reduce false paradoxical effort

* Connects directly to the head box

* Available for most PSG systems in pediatric and adult sizes

* Warranty: 1 year

Piezo belt models

* 0520:1.5 mm safety pins with loops - 6.5' cable

(includes 0523-3, 0523-5)

* 0522:1.5 mm safety pins with buckles - 6.5' cable

(includes 0526-3, 0526-5)

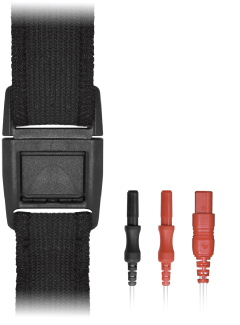

* 0528: High Output with buckles & 1.5 mm safety pins

(Alice* 5 Compatible) (shown)

* 0528A:Alice* 3 compatible with buckles

* 0528A4:Alice* 4 compatible with buckles

* 0529:High Output with loops & 1.5 mm safety pins

(includes 0523-2, 0523-4)

Piezo Accessories

* 0523-2:2-foot Velstretch Loop Belt (orange)

* 0523-3:3-foot Velstretch Loop Belt (black)

* 0523-4:4-foot Velstretch Loop Belt (green)

* 0523-5:5-foot Velstretch Loop Belt (red)

* 0526-2:2-foot Velstretch Buckle Belt (orange)

* 0526-3:3-foot Velstretch Buckle Belt (black)

* 0526-4:4-foot Velstretch Buckle Belt (green)

* 0526-5:5-foot Velstretch Buckle Belt (red)

Which configuration do you need?

Q-RIP

Part # Description

0570 Q-RIP Starter Kit (Includes one 0571 interface plus two 0572 belts).

0571 Q-RIP interface with SUM Output. One year warranty. Uses replaceable AA rechargeable or disposable batteries.

0572 One-size-fits-most adult belt: adjustable from 24" to 48" (60 to 120 cm). One year warranty.

0572 Ped Pediatric Adjustable RIP Belt: adjustable from 12" to 24" (30 to 60 cm). One year warranty.

0572L Extra Large Adjustable RIP Belt: adjustable from 48" to 72" (120 to 180 cm). One year warranty.

Connector Cables

0574 18" (45 cm) Dual 1 mm (keyhole) connector to two 1.5 mm touchproof connectors.

0353 18" (45 cm) Dual 1 mm (keyhole) connector to 1/8" (3.5 mm) male phone connector.

0354 18" (45 cm) Dual 1 mm (keyhole) connector to 1/8" (3.5 mm) female phone connector.

0355 18" (45 cm) Dual 1 mm (keyhole) connector to 3/32" (2.5 mm) male phone connector.

0356 18" (45 cm) Dual 1 mm (keyhole) connector to 3/32" (2.5 mm) female phone connector.

0357 18" (45 cm) Dual 1 mm (keyhole) connector to RJ11 connector.

0358 18" (45 cm) Dual 1 mm (keyhole) connector to RJ10 connector.

Piezo Respiratory Effort Sensors

Part # Description

0520 1.5 mm safety pins with loops - 6.5' cable. Compatible with most PSG Systems (includes 0523-3, 0523-5)

0522 1.5 mm safety pins with buckles - 6.5' cable. Compatible with most PSG Systems (includes 0526-3, 0526-5).

0528 High Output with buckles & 1.5 mm safety pins - Compatible with most PSG Systems including Alice 5 (includes 0526-2, 0526-4).

0528A Alice 3 compatible with buckles (includes 0526-2, 0526-4).

0528A4 Alice 4 compatible with buckles (includes 0526-2, 0526-4).

0528M High Output with buckles & 1.5 mm safety pins that connects with BRAEBON's PSG System.

0529 High Output with loops & 1.5 mm safety pins. Compatible with most PSG Systems (includes 0523-2, 0523-4).

5527 Respiratory Effort Sensor with 1.5 mm safety pins. Compatible with most PSG Systems.

Accessories 0523-2 2-foot Velstretch Loop Belt

0523-3 3-foot Velstretch Loop Belt

0523-4 4-foot Velstretch Loop Belt

0523-5 5-foot Velstretch Loop Belt

0526-2 2-foot Velstretch Buckle Belt

0526-3 3-foot Velstretch Buckle Belt

0526-4 4-foot Velstretch Buckle Belt

0526-5 5-foot Velstretch Buckle Belt

*Alice is a trademark of Phillips.
