PSG (Uyku) Sensörleri
Snore Microphone
Model 0540
* Electret condenser microphone
* Designed to detect higher frequencies of snoring
* Connects to headbox and senses snoring sounds
* Smaller than a dime, allowing comfortable placement
* Warranty: 6 months
Snore Sensor
Model 0542
* Piezo technology
* Small and light
* Two 1.5 mm safety connectors
* Cable length 84 inches (210 cm)
* Warranty: 9 months

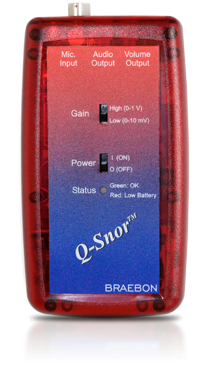

Q-Snor Kit
Model 0546
* Quantitative snoring sound volume meter
* Comes with a Q-Snor microphone (Model 0545)
* Accurately and reliably record decibel sound level intensities
* True accurate pre and post-therapy study comparisons
* Two 1.5mm safety connectors
* Cable length 84 inches (210 cm)
* Warranty: 1 year (interface)
Snore Microphone for MediByte®
Model 8541
* Electret condenser microphone
* Compact and lightweight
* Locking touchproof connector
* Cable length 36 inches (90 cm)
* Warranty: 6 Months
Which configuration do you need?
Snore Sensors
Part # Description
0540 Snore Microphone - 6.5-foot cable length with 1.5 mm safety pins - place on face. Compatible with Most PSG Systems.
0542 Snore Sensor - 6.5-foot cable length with 1.5 mm safety pins - place on neck. Compatible with Most PSG Systems.
8541 Snore Microphone for MediByte® - 36 inch (90 cm) cable length with locking touchproof connector - Place on face.
Quantitative Snore System
Part # Description
0544 Q-SnorTM Interface.
0545 Q-SnorTM Microphone.
0546 Q-SnorTM Kit (includes Model 0544 Interface and Model 0545 Microphone).
Connector Cables
0574 18" (45 cm) Dual 1 mm (keyhole) connector to two 1.5 mm touchproof connectors.
0353 18" (45 cm) Dual 1 mm (keyhole) connector to 1/8" (3.5 mm) male phone connector.
0354 18" (45 cm) Dual 1 mm (keyhole) connector to 1/8" (3.5 mm) female phone connector.
0355 18" (45 cm) Dual 1 mm (keyhole) connector to 3/32" (2.5 mm) male phone connector.
0356 18" (45 cm) Dual 1 mm (keyhole) connector to 3/32" (2.5 mm) female phone connector.
0357 18" (45 cm) Dual 1 mm (keyhole) connector to RJ11 connector.
0358 18" (45 cm) Dual 1 mm (keyhole) connector to RJ10 connector.
